Resources

Technical data, installation, safety, and certification support

What the film is, what it goes on, how it is applied, and the documents that go in a submittal package. Anything that varies by pattern is on that pattern's own page.

Technical dataDocument libraryCatalogs

Product Structure

A 0.2 mm surface that goes over what is already there

Bodaq is a printed and embossed PVC face on a pressure-sensitive, air-bleeding acrylic adhesive, carried on a release liner. It resurfaces laminate, melamine, MDF, painted drywall, plaster, metal, glass and sealed timber without demolition.

Where it goesWalls and partitions, doors and frames, casework and cabinetry, reception desks, columns, elevator cabs and lobby ceilings.
How it goes onDry application. Clean, prime where needed, squeegee from the center out, trim, then heat and post-heat on any curve or return.
Curves and returnsHeat-formable to wrap columns, handrails, radiused desks and compound corners in one piece rather than a seam every foot.
SubstratesPorous, friable or contaminated surfaces need sealing or priming first. That is where jobs fail, not the film.

Technical Data

The numbers, for the submittal

These hold across the range. Roll length, weight, scratch resistance and pattern direction vary by SKU and are printed on each pattern page and on the quote.

Bodaq interior film technical data
MaterialSelf-adhesive PVC architectural film, printed and embossed
Manufacturer Republic of Korea
Face thickness0.2 mm average
Roll width48" (1,220 mm)
Roll length164 ft standard; some collections run 131 ft or 98 ft. 131 ft: BLC, ECF, EXF, PNC, PNT, SF, SL and TNS. 98 ft: NF and RF.
Roll weight66 lbs on a 164 ft roll; 51 lbs on 131 ft and 98 ft rolls
Coverage656 sq ft on a standard roll (524 sq ft at 131 ft, 392 sq ft at 98 ft)
AdhesivePressure-sensitive acrylic, air-bleeding channel structure, repositionable during application
ApplicationDry: no water, no paste
Application temperature12 to 38 °C (54 to 100 °F)
Storage5 to 30 °C (41 to 86 °F), upright, out of direct sun
StretchableYes, heat-formable around curves and returns
Scratch resistanceAverage
Pattern directionAlong the length on most patterns; across the width on a few, marked on each pattern page
Fire ratingClass A. ASTM E84 surface burn reports by SGS, listed below
Warranty10 years on the film material, per bodaq.com. Warranty terms (PDF)
Exterior useThe EXF exterior collection only: UV-rated and separately warranted. Interior patterns used outside are not covered.
CareClean with mild detergent. Cleaning & maintenance instructions (PDF)
Full data bulletin. The manufacturer's Technical Data Bulletin (PDF) and the film safety data sheet (PDF) go in every submittal package.

Testing & Certification

What we can put in the submittal package

Certificates are issued by the manufacturer and revised from time to time, so we send the current documents with the quote rather than reproduce numbers here that will age. The reports published on bodaq.com are linked below.

Installation

The dry-application method, in five steps

The method statement from bodaq.com. Bodaq USA supplies rolls and does not install; for a certified installer, bodaq.net runs the network.

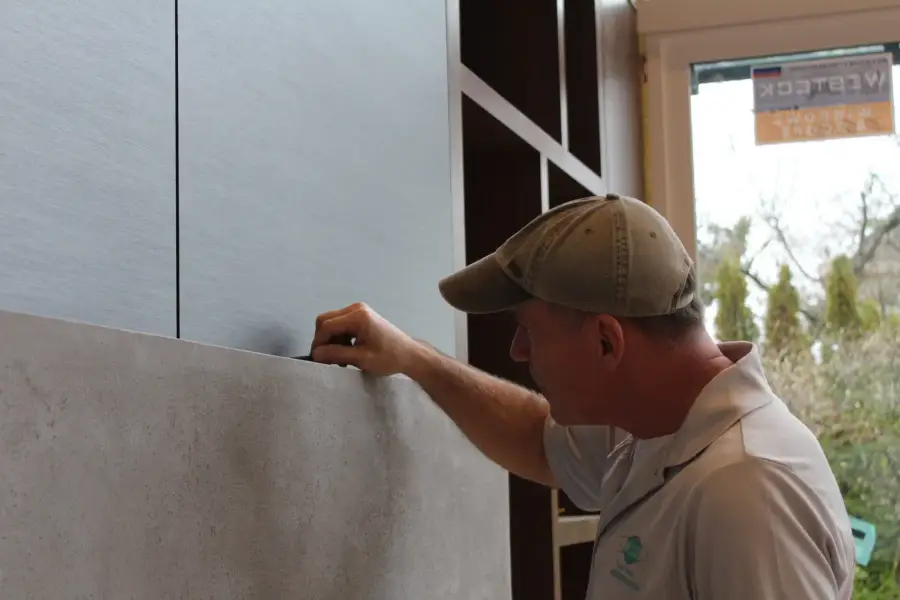

Installer smoothing a stone-look Bodaq film onto a wall panel
01
Create a smooth, flat surface

If needed, create a smooth, flat surface using putty followed by light sanding.

02
Prime for adhesion

Apply the primer on the surface for better adhesion, then around edges and corners, and sand gently when dry. Primer requirements vary by surface.

03
Measure and cut

Measure and cut the Bodaq interior film.

04
Peel the release backing

Peel off and pull the release backing.

05
Adhere from top to bottom

With a squeegee held at a 45-degree angle, firmly adhere the film from top to bottom in a fan-shaped sweeping motion.

Document Library

Every published report and data sheet

The full technical bulletin set from bodaq.com: fire, antimicrobial and chemical resistance, material properties, safety data, specifications and sustainability. Each opens as a PDF in a new tab.

Fire Retardancy Tests 12

Surface burning and fire test reports for Bodaq finishes.

Antimicrobial & Chemical Resistance 8

Fungus, bacteria, heavy metal, phthalate and gas toxicity test reports.

Material Properties 8

How Bodaq materials behave under different conditions: strength, wear and resistance.

Material Safety Data Sheets 2

Physical, chemical and toxicological properties, safe handling, first aid and emergency response.

Technical Specifications & Instructions 5

Step-by-step guidelines for using Bodaq materials in different applications.

Sustainability 5

Our commitment to environmental responsibility.

Certificate of Distributorship 1

Catalogs

The catalog and the lookbooks

Printed catalogs are one per account, per year. The PDF and the flipbooks are free and always current, and the discontinued list tells you which codes to stop specifying.

Cover of Designer Select 2026
Designer Select 2026125 best-selling Bodaq patterns, flipbook

Open flipbook

Common questions

What specifiers ask first

What surfaces can Bodaq film wrap?

Wood and MDF, painted drywall, metal, glass, laminate and plastic. Proper surface preparation is essential: sanding and priming may be required for best adhesion.

Is Bodaq Interior Film fire-rated?

Yes. Bodaq Interior Film is certified Class A fire-rated. In high temperatures the film melts gradually to prevent flame spread. The ASTM E84 reports are in the document library.

Is it water-resistant and antifungal?

Yes: water-resistant, mold and fungus resistant, and designed for humid environments such as bathrooms, laundry rooms, shower stall exteriors and kitchen surfaces. See the antifungal test reports.

Is Bodaq film self-adhesive?

Yes. It comes with a pre-applied, pressure-sensitive adhesive on the back. For porous or uneven surfaces, Bodaq Primer is recommended; it is designed specifically for architectural vinyl.

Can the film be removed later?

Yes, though it is designed for long-term use. It is easy to remove within the first hour of installation; older applications take 30 to 60 minutes for a standard 7 × 3 ft panel. A new layer of film can also be applied over the existing one.
